GATTA-PAINT HiRes

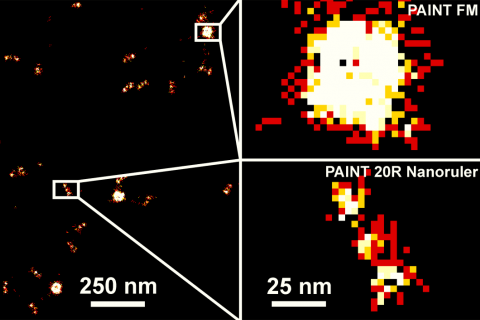

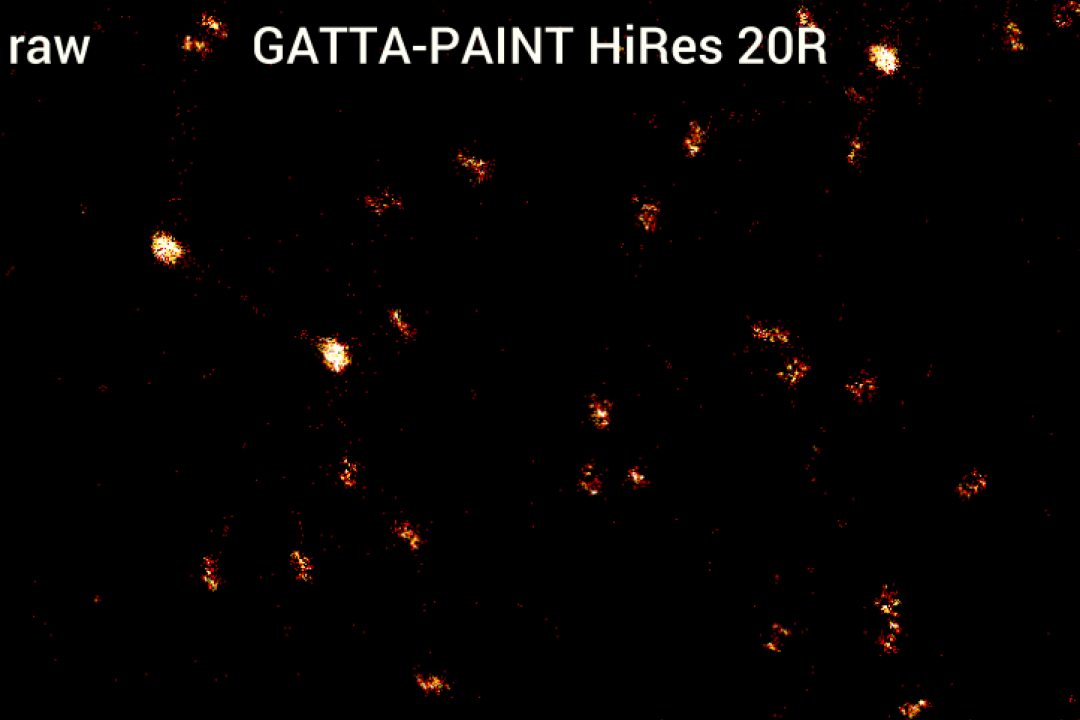

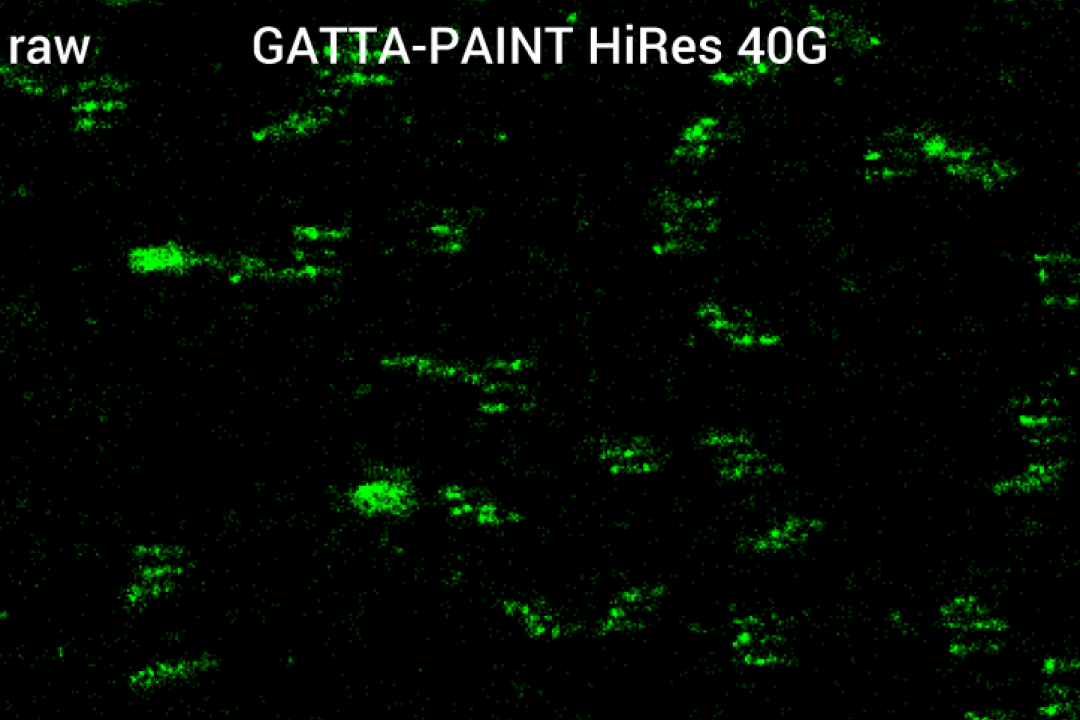

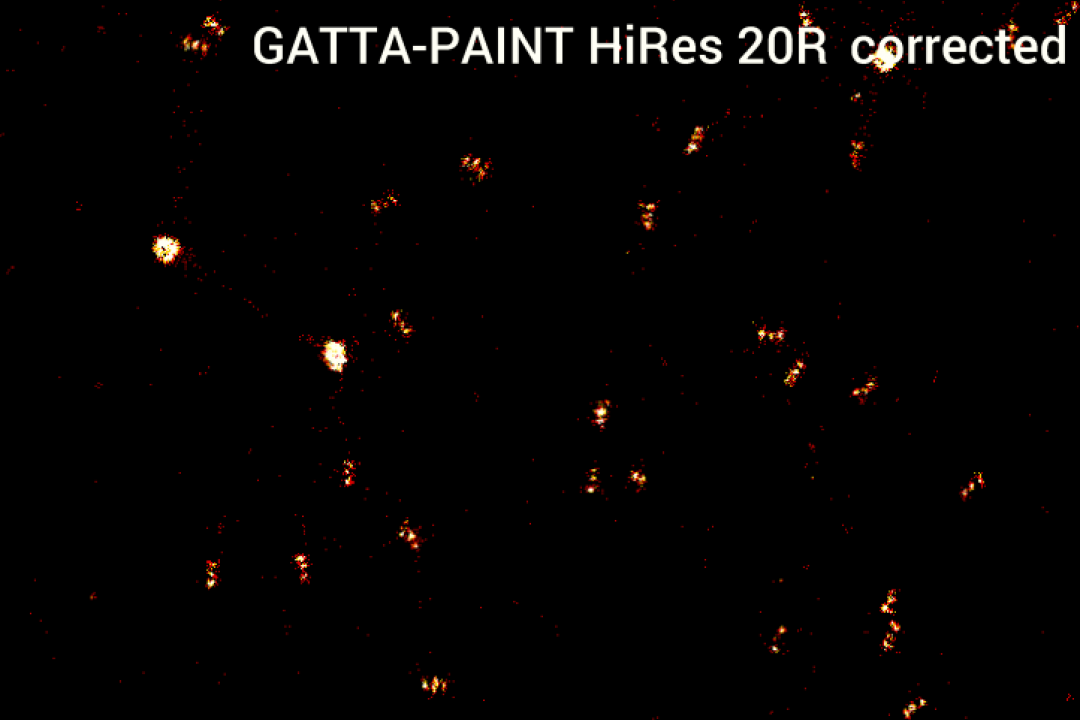

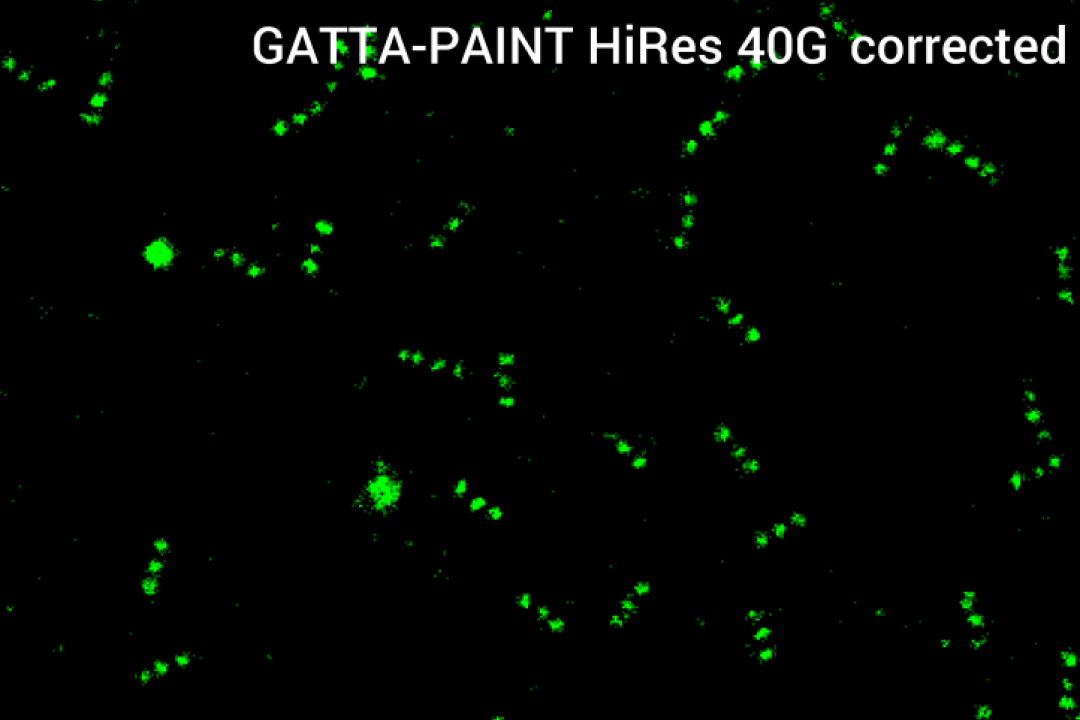

Nanorulers from the GATTA-PAINT HiRes series serve all advantages of the classical GATTA-PAINT nanorulers. Additionally, they include special DNA-PAINT based fiducial markers for a precise and reliable drift correction. These fiducial markers outclass common fiducial markers based on fluorescent beads by having a stable connection to the surface and emitting a signal which does neither bleach nor exceed the detector’s dynamic range.

For the GATTA-PAINT HiRes nanorulers we offer the mark-to-mark distances in the sizes 20 nm, 40 nm and 80 nm. Each size is available in the colors red (ATTO 655) or green (ATTO 542).

product properties of GATTA-PAINT HiRes 80

	GATTA-PAINT HiRes 80R	GATTA-PAINT HiRes 80G	GATTA-PAINT HiRes 80G
Color	red	yellow	green
Available fluorophores	ATTO 655	Cy3B	ATTO 542
Recommended laser source	625 - 665 nm	560 - 590 nm	530 - 560 nm
Surface density Fiducial Marker	≈ 0,1/µm²	≈ 0,1/µm²	≈ 0,1/µm²
Surface density PAINT Nanoruler	≈ 1/μm²	≈ 1/μm²	≈ 1/μm²
PAINT Nanoruler Distance	2x 80 nm	2x 80 nm	2x 80 nm
Level	Beginner	Beginner	Beginner
Price	400,-€	400,-€	400,-€

product properties of GATTA-PAINT HiRes 40

	GATTA-PAINT HiRes 40R	GATTA-PAINT HiRes 40Y	GATTA-PAINT HiRes 40G
Color	red	yellow	green
Available fluorophores	ATTO 655	Cy3B	ATTO 542
Recommended laser source	625 - 665 nm	560 - 590 nm	530 - 560 nm
Surface density Fiducial Marker	≈ 0,1/µm²	≈ 0,1/µm²	≈ 0,1/µm²
Surface density PAINT Nanoruler	≈ 1/μm²	≈ 1/μm²	≈ 1/μm²
PAINT Nanoruler Distance	2x 40 nm	2x 40 nm	2x 40 nm
Level	Advanced	Advanced	Advanced
Price	400,-€	400,-€	400,-€

product properties of GATTA-PAINT HiRes 20

	GATTA-PAINT HiRes 20R	GATTA-PAINT HiRes 20Y	GATTA-PAINT HiRes 20G
Color	red	yellow	green
Available fluorophores	ATTO 655	Cy3B	ATTO 542
Recommended laser source	625 - 665 nm	560 - 590 nm	530 - 560 nm
Surface density Fiducial Marker	≈ 0,1/µm²	≈ 0,1/µm²	≈ 0,1/µm²
Surface density PAINT Nanoruler	≈ 1/μm²	≈ 1/μm²	≈ 1/μm²
PAINT Nanoruler Distance	2x 20 nm	2x 20 nm	2x 20 nm
Level	Expert	Expert	Expert
Price	400,-€	400,-€	400,-€

Beginner: Samples to check the basic functions of your microscope. Easy to resolve, also for beginners in the field of super-resolution microscopy.

Advanced: Samples to optimize the settings of your microscope. Advanced experience is necessary in order to resolve the nanorulers.

Expert: Samples which demand perfectly aligned microscopes and very experienced users which are able to optimize acquisition and data evaluation.
