GATTA-STED Nanoruler

GATTA-STED Nanoruler GATTA-STED Nanoruler

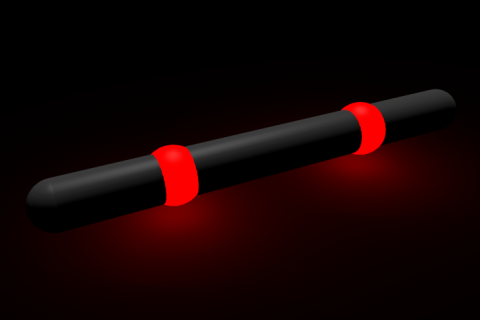

Being the first super-resolution microscopy technique the STED method revolutionized the light microscopy. With the nanorulers from the GATTA-STED series now adequate calibration probes are finally available. The single color nanorulers carry two fluorescent marks out of dense arrangements of the high quantum yield dye ATTO 647N. We offer the mark-to-mark distances in the sizes 50 nm, 70 nm, 90 nm and 120 nm. In addition we offer a new design containing three emitting points with two different fluorophores which allows the acquisition of very eye-catching images. The multicolor nanoruler with three emitting points is available with the size of 140 nm (ATTO 647N & ATTO 594).

On request we can also design special solutions for your specific requirements. All nanoruler samples will be delivered on a sealed glass slide which you can comfortably put directly on your microscope.

GATTA-STED Nanoruler GATTA-STED Nanoruler

New super-resolution Button GATTA-STED - brightline

The GATTAquant Brightline series delivers you a much better tool for your experiments and calibration measurements we now developed a new series of GATTA-STED nanorulers featuring an even higher fluorescence brightness but without any loss of compactness compared to previous GATTA-STED nanorulers.

Currently we provide as colors red (ATTO 647N), blue (Oregon Green 488) and multicolorer nanorulers with the combination of red (ATTO 647N) and orange (Alexa Fluor 594).

New super-resolution Button GATTA-STED - brightline series

product properties of GATTA-STED - brightline Nanoruler

Nanoruler STED 120R - brightline STED 90R - brightline STED 70R - brightline STED 50R - brightline
Color red red red red
Available fluorophores ATTO 647N ATTO 647N ATTO 647N ATTO 647N
Recommended laser source 630 - 650 nm 630 - 650 nm 630 - 650 nm 630 - 650 nm
Surface density ≈ 1/µm² ≈ 1/µm² ≈ 1/µm² ≈ 1/µm²
Distance 120 nm 90 nm 70 nm 50 nm
Level Beginner Beginner Advanced Advanced
Price 350,-€ 350,-€ 350,-€ 350,-€

product properties of GATTA-STED - brightline Multicolor Nanoruler

Nanoruler STED 140ROR - brightline
Color red - orange - red
Available fluorophores ATTO 647N - ATTO 594 - ATTO 647N
Recommended laser source 630 - 650 nm / 565 - 610 nm / 630 - 650 nm
Surface density ≈ 1/μm²
Distance red - red: 140 nm / red - orange: 70nm
Level Advanced
Price 400,-€

The standard version of our GATTA-STED nanorulers you can still request on our legacy products page.

Beginner: Samples to check the basic functions of your microscope. Easy to resolve, also for beginners in the field of microscopy.

Advanced: Samples to optimize the settings of your microscope. Advanced experience is necessary in order to resolve the nanorulers.

fluorophore properties

Fluorophore Our notation
Excitation / nm
Emission / nm
ATTO 647N R 647 664
ATTO 594 O 594 626
Product sheet
Full size super-resolution Images
References / Experience Reports
