GATTA-Confocal Nanoruler

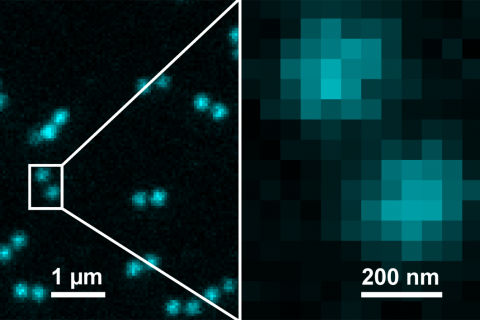

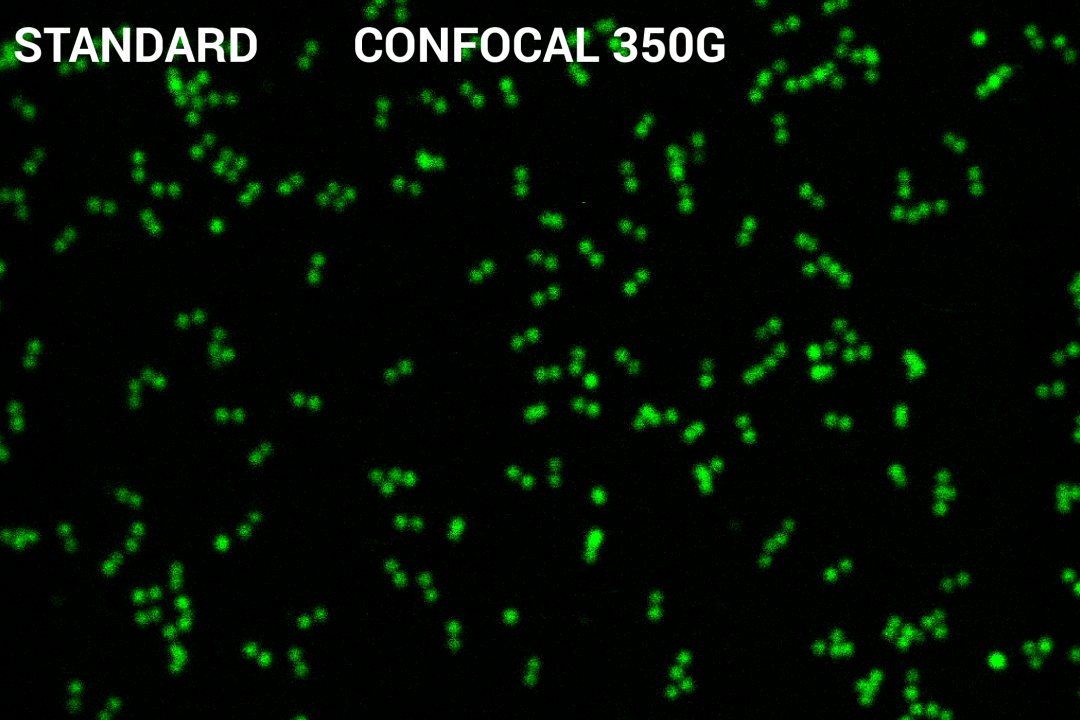

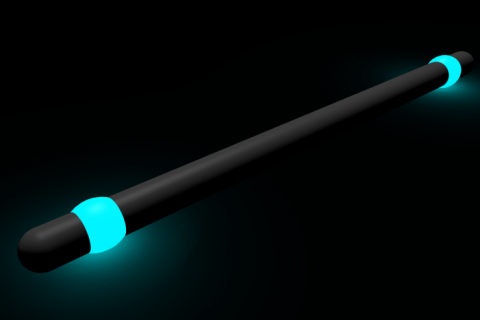

Nanorulers from the GATTA-Confocal series are designed for users of classical (i.e. diffraction limited) microscopy systems. The rulers carry two fluorescent marks out of multiple high quantum yield dye molecules. Thereby the mark-to-mark distance has a value of 350 nm. GATTA-Confocal rulers are available in the colors red (ATTO 647N), yellow (Alexa568), green (ATTO 532) or blue (Alexa488).

On request we can also design special solutions for your specific requirements. All samples will be delivered on a sealed glass slide which you can comfortably put directly on your microscope.

New super-resolution Button GATTA-Confocal - brightline

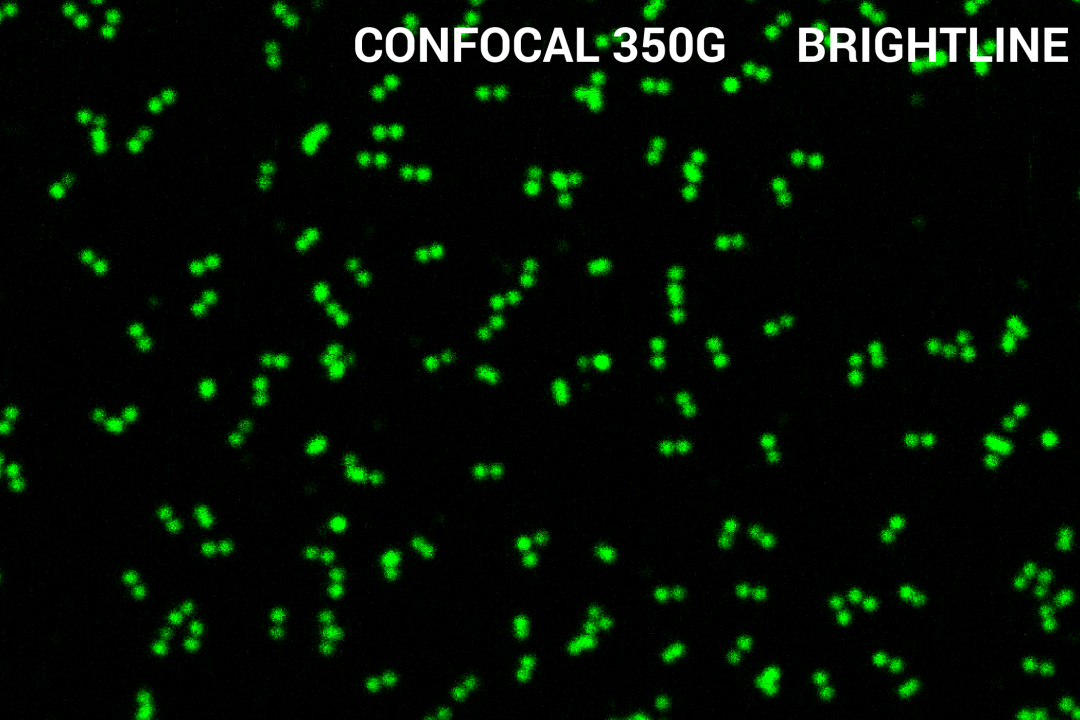

The GATTAquant Brightline series delivers you a much better tool for your experiments and calibration measurements we now developed a new series of GATTA-Confocal nanorulers featuring an even higher fluorescence brightness but without any loss of compactness compared to previous GATTA-Confocal nanorulers.


Currently we provide as colors red (ATTO 647N), yellow (ATTO 565), green (ATTO 543) and blue (Alexa Fluor 488).

New super-resolution Button GATTA-Confocal - brightline series

product properties of GATTA-Confocal - brightline Nanoruler

Nanoruler Confocal 350R - brightline Confocal 350Y - brightline Confocal 350G - brightline Confocal 350B - brightline
Color red yellow green blue
Fluorophore ATTO 647N ATTO 565 ATTO 532 Alexa Fluor® 488
Recommended laser source 630 - 650 nm 540 - 585 nm 515 - 540 nm 480 - 505 nm
Surface density ≈ 1/μm² ≈ 1/μm² ≈ 1/μm² ≈ 1/μm²
Distance 350 nm 350 nm 350 nm 350 nm
Level Beginner Beginner Beginner Beginner
Price 350,-€ 350,-€ 350,-€ 350,-€

product properties of GATTA-Confocal - brightline Multiruler

Nanoruler GATTA-Confocal RYB - brightline* GATTA-Confocal RGB - brightline*
Color red / yellow / blue red / green / blue
Fluorophore ATTO 647N / ATTO 565 / Alexa Fluor® 488 ATTO 647N / ATTO 532 / Alexa Fluor® 488
Recommended laser source 630 - 650 nm / 540 - 585 nm / 480 - 505 nm 630 - 650 nm / 515 - 540 nm / 480 - 505 nm
Surface density ≈ 1/μm² ≈ 1/μm²
Distance red: 350 nm / yellow: 320 nm / blue: 270 nm red: 350 nm / green: 290 nm / blue: 270 nm
Level Beginner Beginner
Price 400,-€ 400,-€

*All confocal multiruler distances can of course be ordered seperately! If you should wish a quotation for one these distances please inform us in the field "note".

The standard version of our GATTA-Confocal nanorulers you can still request on our legacy products page.

Beginner: Samples to check the basic functions of your microscope. Easy to resolve, also for beginners in the field of microscopy.

fluorophore properties

Fluorophore Our notation
Excitation / nm
Emission / nm
ATTO 647N R 647 664
ATTO 565 Y 564 590
ATTO 532 G 532 552
Alexa Fluor 488 B 488 525
