How to use our Nanoruler


GATTAquant nanorulers are delivered ready to use. This means no further sample preparation is necessary. You just put the sample on your microscope, start the acquisition and analyse the data with our GATTAnalysis software.

Click here to find more information about the GATTAnalysis software.

1st Step

1st Step 1st Step

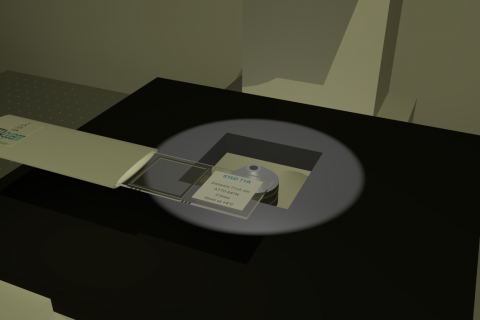

GATTAquant nanorulers are shipped immobilized on a coverslip and are embedded in polymer or imaging buffer.

2nd Step

2nd Step

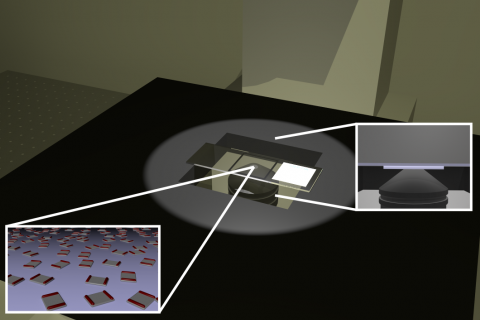

No further sample preparation is necessary. You just put the GATTAquant nanoruler sample on your microscope but make sure that the coverslip side faces the objective (right inset of the picture).

3rd Step

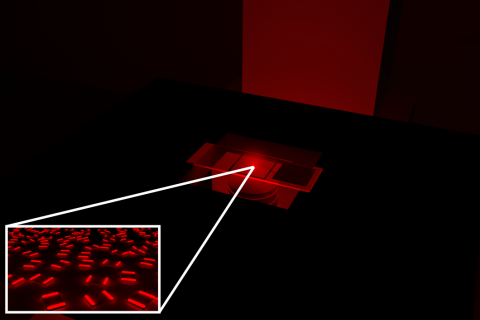

Due to its much lower fluorescent signal (compared to a sample with stained cells for example) a sample of GATTAquant nanorulers makes it a bit more ambitious to focus on the surface. Therefore switch on laser and camera and drive carefully the objective control in one direction until the surface is visible. How a typical surface containing nanorulers looks like is illustrated in the video next to this text. Please take care, that there is enough immersion oil between objective and glass slide and that this is free of air bubbles because otherwise the sample probably cannot be imaged correctly.

4th Step

4th Step

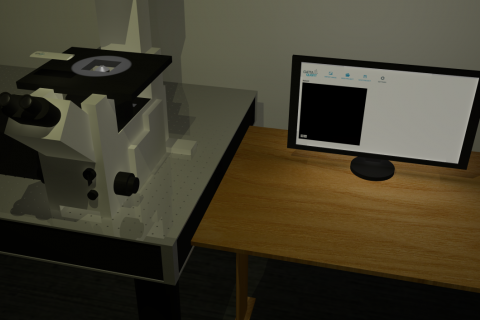

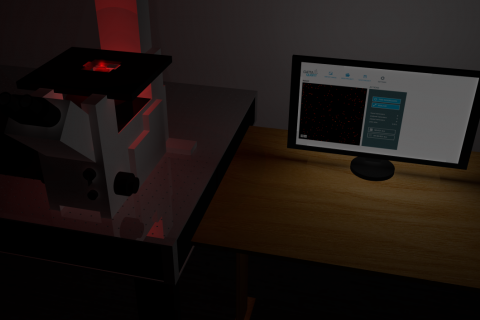

Optimize the microscope settings and start the acquisition.
Process the raw data to get a super-resolution image in a common format (normally this is done automatically if you use a commercial system).




5th Step

5th Step 5th Step

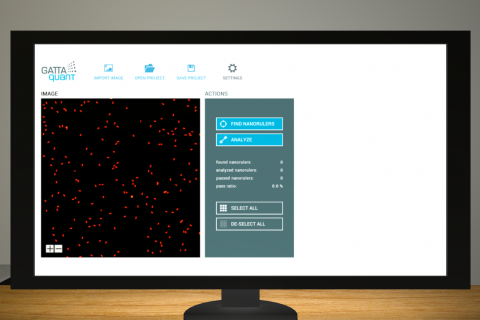

In order to analyze the data in an objective, easy and fast way we offer the GATTAnalysis software tool. Just import your data and check with a few clicks the spatial resolution of your microscope.

6th Step

6th Step

The GATTAnalysis detects the valid nanorulers.

7th Step

7th Step

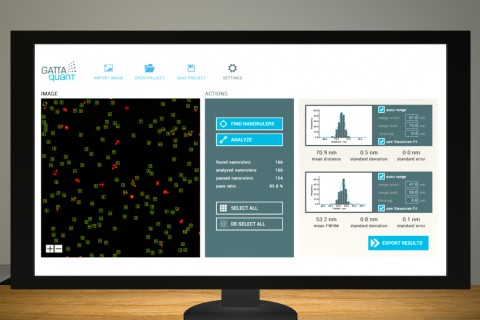

The GATTAnalysis software extracts the measured distances of the nanorulers as well calculates values like FWHM or localization precision.
