GATTA-SIM Nanoruler

 GATTA-SIM Nanoruler  GATTA-SIM Nanoruler

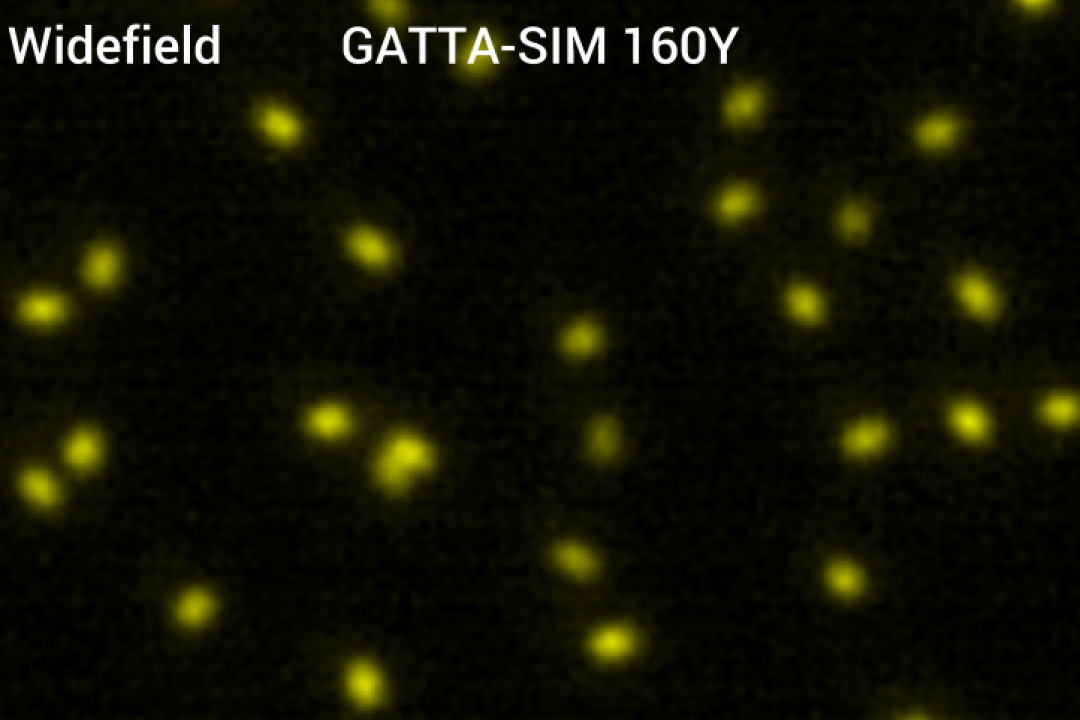

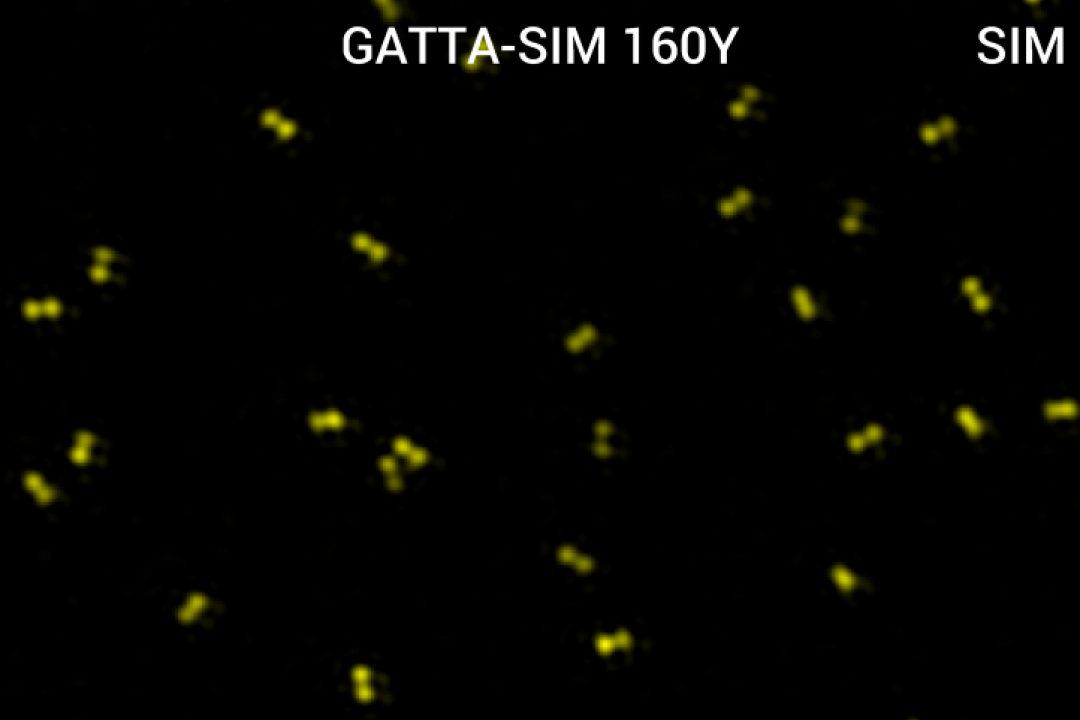

Nanorulers from the GATTA-SIM series are the perfect samples to check the resolution of your SIM system. The single color nanorulers carry two fluorescent marks out of dense arrangements of high quantum yield dye molecules. In addition we offer a new design containing three emitting points with two different fluorophores which allows the acquisition of very eye-catching images. The mark-to-mark distances of the single color GATTA-SIM nanorulers are available in the sizes 120 nm, 140 nm and 160 nm. We offer you the 160nm size in the colors red (ATTO 647N), yellow (Alexa Fluor® 568) or blue (Alexa Fluor® 488). The 140 nm size is available in the colors yellow and blue and the 120nm size is only available in blue. The multicolor nanorulers with three emitting points are available in the sizes 140 nm (Alexa Fluor 568 & Alexa Fluor 488) and 160 nm (ATTO 647N & Alexa Fluor 568 or ATTO 647N & Alexa Fluor 488).

On request we can also design special solutions for your specific requirements. All nanoruler samples will be GATTA-SIM super-resolution picture delivered on a sealed glass slide which you can comfortably put directly on your microscope.

 GATTA-SIM Nanoruler  GATTA-SIM Nanoruler

New super-resolution Button GATTA-SIM - brightline

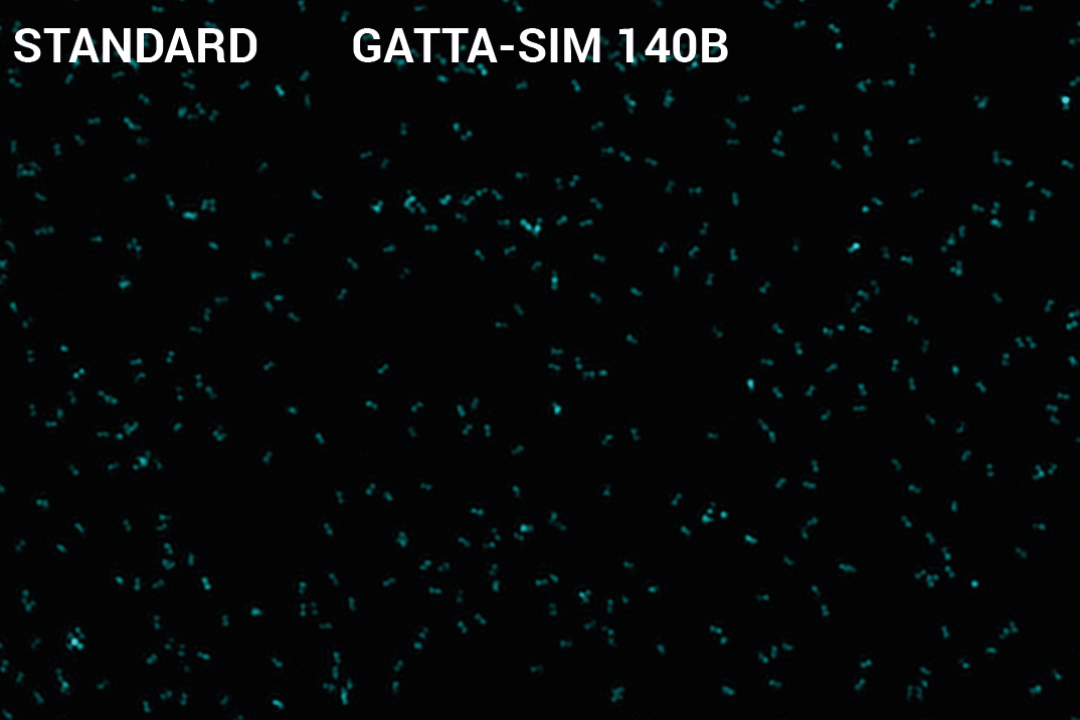

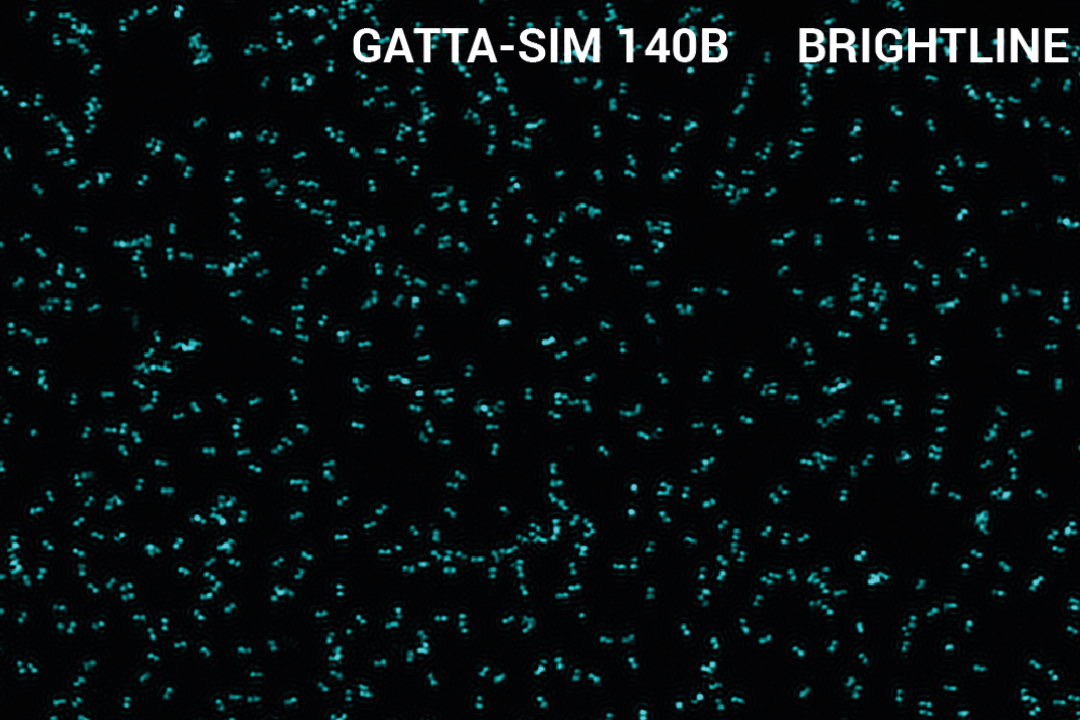

The GATTAquant Brightline series delivers you a much better tool for your experiments and calibration measurements we now developed a new series of GATTA-SIM nanorulers featuring an even higher fluorescence brightness but without any loss of compactness compared to previous GATTA-SIM nanorulers.


Currently we provide as colors red (ATTO 647N), yellow (Alexa Fluor 568), and blue (Alexa Fluor 488).

If you could not find the new GATTA-SIM - brightline nanorulers with your required distance please add a note to your request and we are happy to offer you custom samples optimized for your application.

New super-resolution Button GATTA-SIM - brightline series

product properties of GATTA-SIM - brightline 160 nm Nanoruler

Nanoruler SIM 160R - brightline SIM 160Y - brightline SIM 160B - brightline
Color red yellow blue
Available fluorophores ATTO 647N ATTO 565 Alexa Fluor® 488
Recommended laser source 630 - 650 nm 540 - 585 nm 480 - 505 nm
Surface density ≈ 1/µm² ≈ 1/µm² ≈ 1/µm²
Distance 160 nm 160 nm 160 nm
Level Beginner Beginner Beginner
Price 350,-€ 350,-€ 350,-€

product properties of GATTA-SIM - brightline 140 nm and 120 nm Nanoruler

Nanoruler SIM 140Y - brightline SIM 140B - brightline SIM 120B - brightline
Color yellow blue blue
Available fluorophores ATTO 565 Alexa Fluor® 488 Alexa Fluor® 488
Recommended laser source 540 - 585 nm 480 - 505 nm 480 - 505 nm
Surface density ≈ 1/µm² ≈ 1/µm² ≈ 1/µm²
Distance 140 nm 140 nm 120 nm
Level Advanced Advanced Expert
Price 350,-€ 350,-€ 350,-€

product characteristics of GATTA-SIM - brightline Multicolor Nanoruler

Nanoruler SIM 160RYR - brightline SIM 160RBR - brightline SIM 140YBY - brightline
Color red - yellow - red red - blue - red yellow - blue - yellow
Available fluorophores ATTO 647N - ATTO 565 - ATTO 647N ATTO 647N - Alexa Fluor® 488 - ATTO 647N ATTO 565 - Alexa Fluor® 488 - ATTO 565
Recommended laser source 630 - 650 nm / 540 - 585 nm / 630 - 650 nm 630 - 650 nm / 480 - 505 nm / 630 - 650 nm 540 - 585 nm / 480 - 505 nm / 540 - 585 nm
Surface density ≈ 1/μm² ≈ 1/μm² ≈ 1/μm²
Distance red - red: 160 nm / red - yellow: 80nm red - red: 160 nm / red - blue: 80nm yellow - yellow: 140 nm / yellow - blue: 70nm
Level Beginner Beginner Advanced
Price 400,-€ 400,-€ 400,-€

The standard version of our GATTA-SIM nanorulers you can still request on our legacy products page.

Beginner: Samples to check the basic functions of your microscope. Easy to resolve, also for beginners in the field of super-resolution microscopy.

Advanced: Samples to optimize the settings of your microscope. Advanced experience is necessary in order to resolve the nanorulers.

Expert: Samples which demand perfectly aligned microscopes and very experienced users which are able to optimize acquisition and data evaluation.

fluorophore properties

 Fluorophore Our notation
Excitation / nm
Emission / nm
ATTO 647N R 647 664
ATTO 565 Y 564 590
Alexa Fluor 488 B 488 525
Product sheet
Full size super-resolution Images
References / Experience Reports

Leica Microsystems Carl-Zeiss Microscopy GmbH  ETH Zürich
